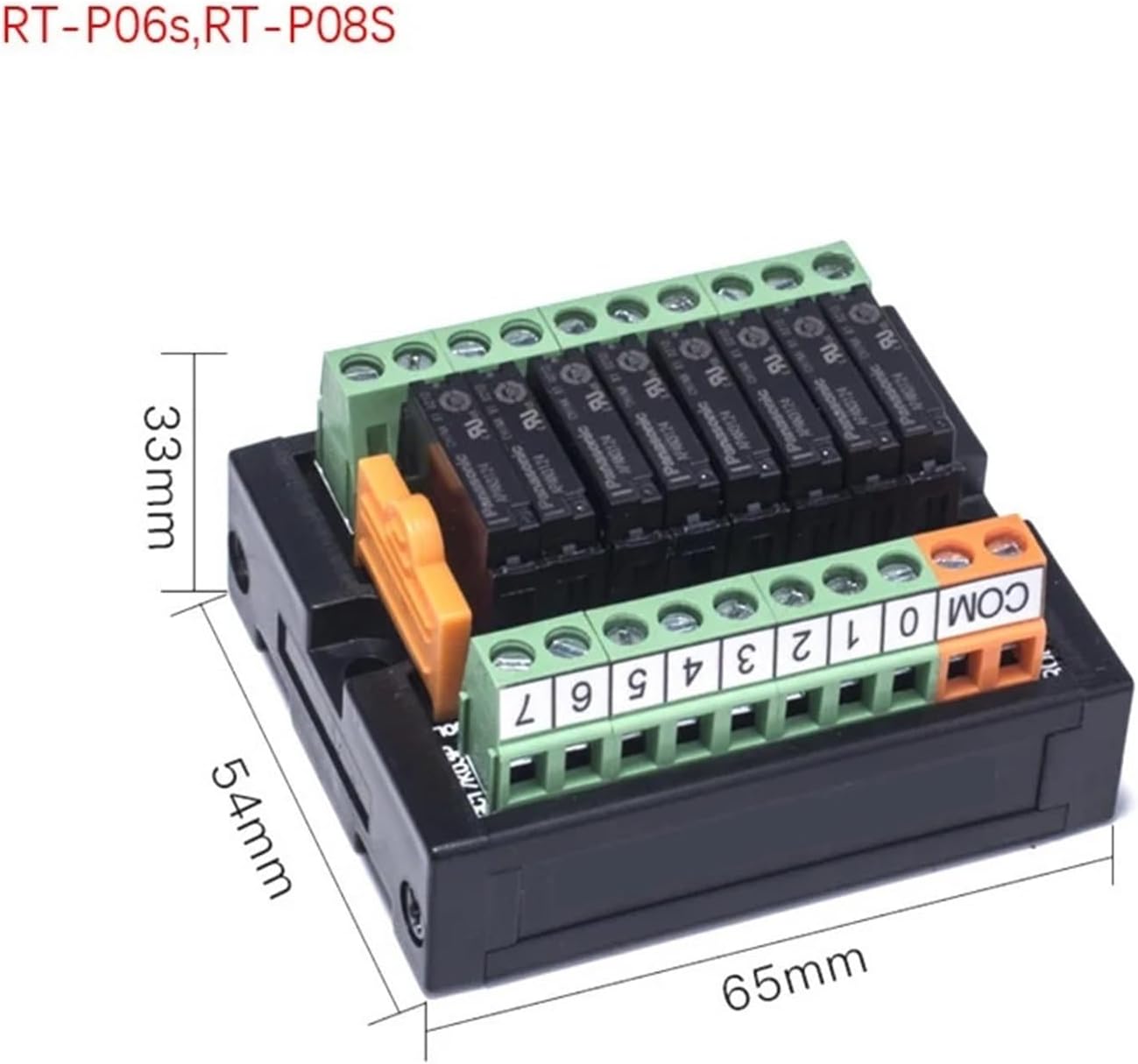

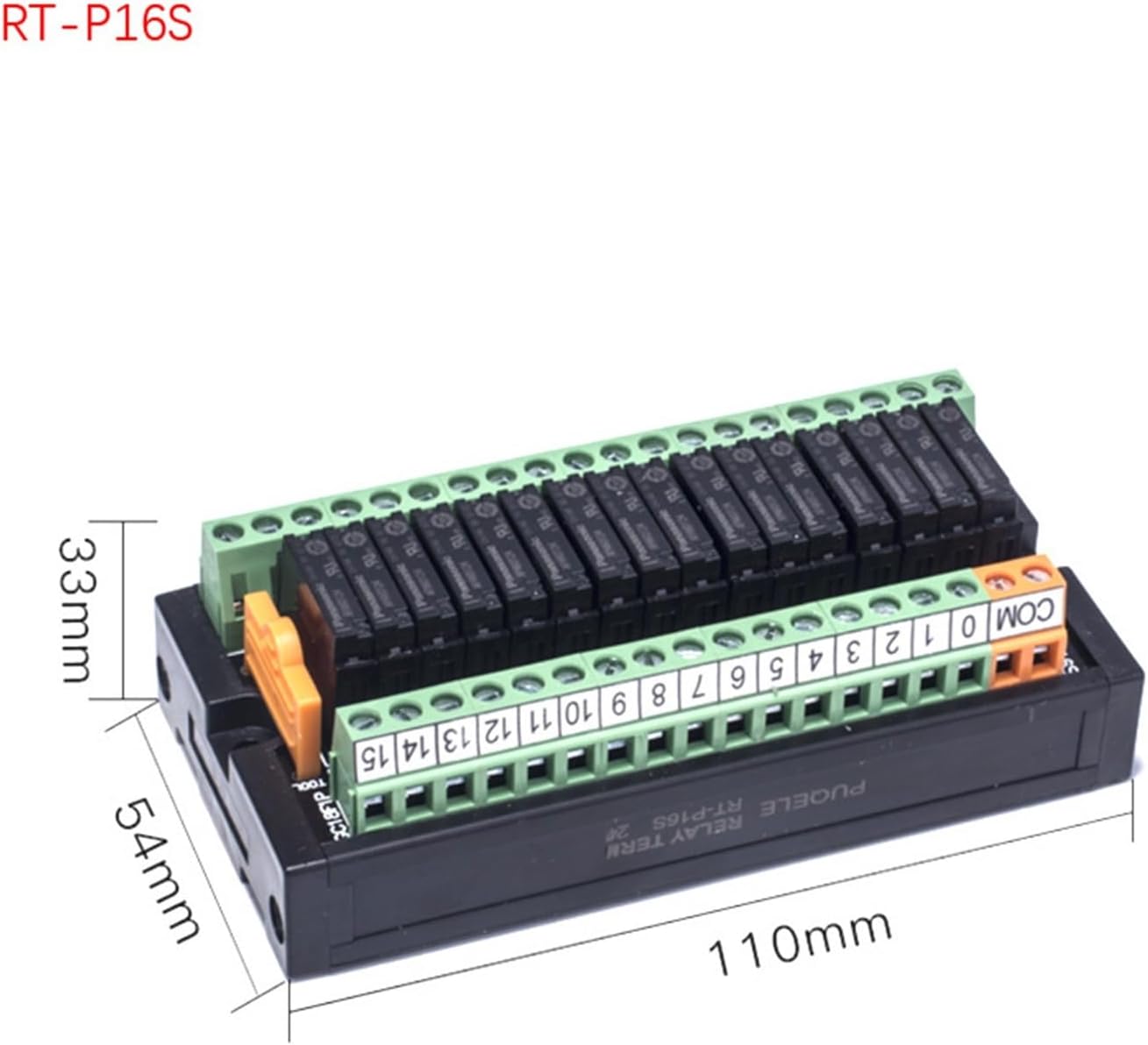

PLC Signal Amplifier Board Din Rail Normally Open PLC DC Output Signal Amplifier Board Relay Module 24V 5A RT-P 4/6/8/10/16 Channels Control Module(RT-P08s)

Description35mm DIN rail installation and screw installation dual purposeBuilt-in PA-N relay, pluggableCoil loop input non-polar NPN/PNP (COM+/-) dual purposeInput circuit working status LED indicator (green/red)SpecificationModel: RT-PContact material: silver nickel alloy plated 24k goldRated voltage: 24VDCRated load: 5A 250VAC/30VDCWorking voltage: 120% of rated voltageOperating voltage: 70% of rated voltageReset voltage: 5% of rated voltageRated power consumption: 110mW (only coil/each loop)Action time: 10msReset time: 5msPackage Includes1 × Relay module==========Power Source : DCContact Load : Low PowerVoltage : 24VOrigin : ChinaProtect Feature : SealedUse : General Purpose

• 【Material】：Adopting high quality transistor, superior performance, stable and reliable quality, the output signal optocoupler isolation, strong anti-interference ability.
• 【Widely used】: The output can control high-power devices, light bulbs, LED strips, DC motors, miniature pumps, solenoid valves and so on.
• 【Principle】: Through optoelectronic isolation and amplification of weak control (only a few milliamps of current), the final output of higher power control, direct drive motors, contactors, solenoid valves and so on.
• 【Advantages】: Its response time can be as low as milliseconds and there is no limit to the number of switches. It can directly replace traditional relays, reducing maintenance time and cost.
• 【Features】: Optical isolation is used between the input and output stages, and the two stages are completely independent, which effectively avoids the instability caused by mutual interference of the system, and effectively
