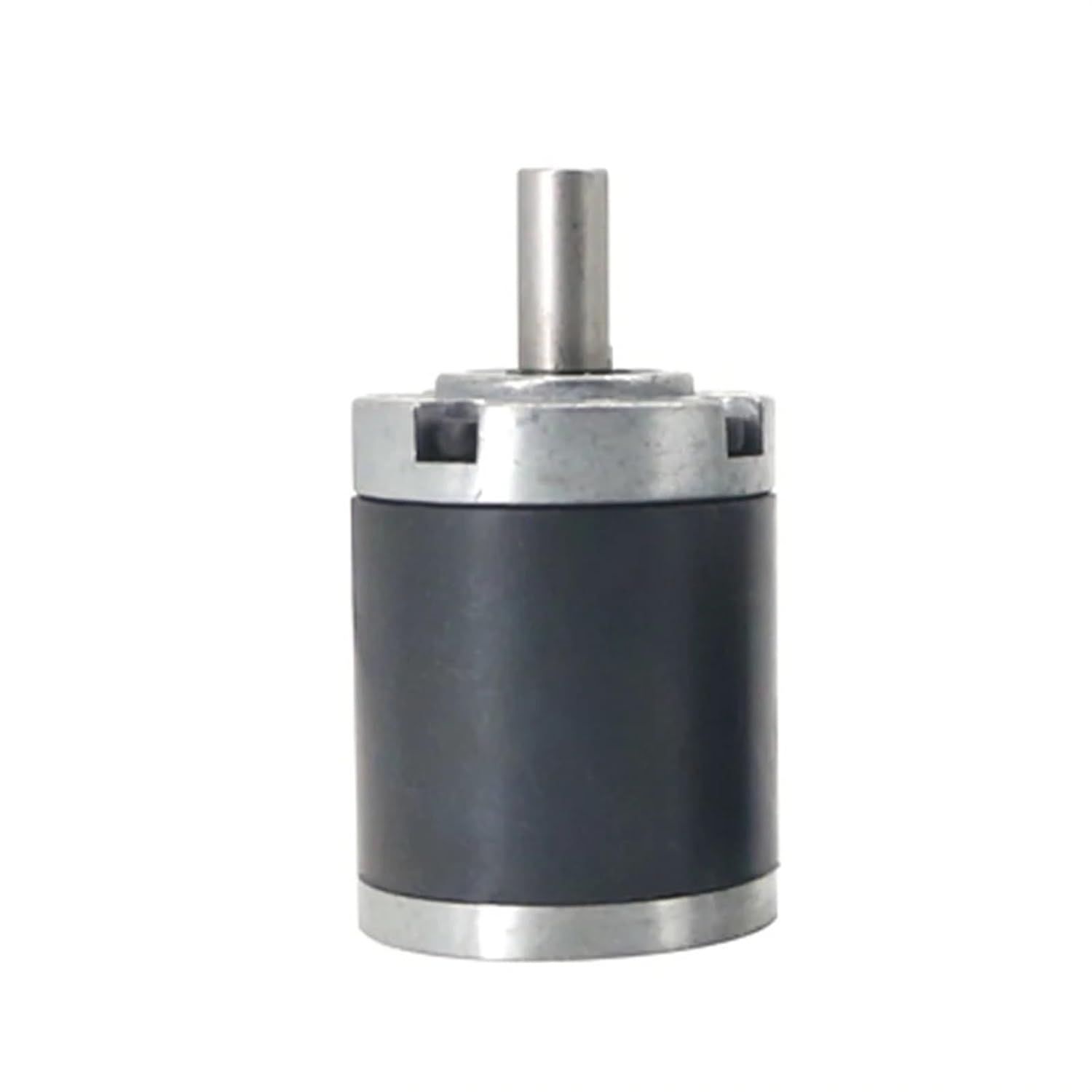

36mm Planetary Gear Motor Gearbox for 540 545 550 555 3650 DC Motor DIY Brushed Geared Motor(1 Ratio 3.7,6MM Shaft Diameter)

36mm Planetary Gear Motor Gearbox For 540 545 550 555 3650 DC Motor DIY Brushed Geared Motor36mm Diameter GearboxShipping list: 1*Gearbox + 1*Motor GearGearBox Diameter:36MMMotor Gear Hole Diameter:3.17mmSuitable for those motor models: 545/540/550/550/3670/3650 ....motors models;(shaft diameter 5MM's brushless motor)Other instructions:---------------------1.The shaft is a solid shaft .2. The color of the motor housing will be changed with different batches.Installation requirements----------------------Motor installation size: motor hole distance 25-26MMmotor shaft length requirements: motor housing plane to shaft head plane 11-11.5MMMotor shaft requirements---------------motor shaft diameter 3.17mm / 5mmGearbox output shaft diameter: 6MM / 8MMOutput shaft length: 17MMAbout Gear motor (combined with motor and reducer gearbox)Original motor speed ÷ Deceleration ratio = output speedFor example:Gear ratio = 1:298; Motor no-load speed = 6V 10000; Output speed = 10000 ÷ 298 = about 6V 30RPMCommon torque unit: 1N.M = 10KG.CM = 0.1KG.MAbout the torque of the motor:"Strength", if the motor torque is too small, can't drive to take the weight of the object.Calculation formula:Output speed (no-load speed) after motor reduction= Motor no-load input speed/gearbox reduction ratioMotor rated output speed= Rated motor input speed / gearbox reduction ratio Motor no-load input speed / gearbox reduction ratio * 80%Output torque of motor after deceleration (rated torque)= Motor load torque * reduction ratio * gearbox efficiency

• Efficient Power Transmission: Our planetary gear motor is uniquely designed to realize efficient power transmission. It ensures stable output power through the cooperative work of multiple gears and is suitable for all types of mechanical equipment and automation systems.
• Compact Design: Planetary gear motors have a compact design that delivers powerful torque output in a limited space. Whether for industrial robots, automation devices, or power tools, they can be easily installed and integrated.
• EXCELLENT DURABILITY: Made of high quality materials, they are highly resistant to wear and fatigue. Our motors undergo rigorous quality testing and are able to maintain stable operation for long periods of time in harsh working environments, reducing maintenance costs.
• A variety of specifications available: We offer a wide range of specifications and models of planetary gear motors to meet different application requirements. Whether it is small equipment or large machinery, we have the right solution to support customization.
• Low Noise and Efficient Heat Dissipation: The planetary gear motor design emphasizes low noise operation to ensure a quiet and comfortable working environment. In addition, advanced heat dissipation technology keeps the motor at a lower temperature during high load operation, prolonging service life and improving overall efficiency.
